Key Investigators

  • Xiao Da (MGH)
  • Yangming Ou (MGH)
  • Andriy Fedorov (BWH)
  • Steve Pieper (Isomics)
  • Jayashree Kalpathy-Cramer (MGH)

Project Description

Dynamic Susceptibility Contrast (DSC) MRI imaging is an important functional imaging method that enables quantitative assessment of tissue hemodynamic patterns. Abnormality of blood flow, volume and permeability is frequently observed during tumor growth, and characterization of these perfusion attributes has become clinically important for both diagnosis and therapy planning. In the context of glial neoplasms, perfusion characteristics have been shown to correlate with tumor type and grade and hence influence treatment decisions.

DSC MRI imaging is based on the principle that flow of a paramagnetic contrast agent through a capillary bed will transiently change the magnetic susceptibility of the given tissue. Decreased signal intensity on spin-echo or gradient-echo images after the first pass of the contrast agent, frequently described as susceptibility-induced T2* shortening, is the result of this temporal change in magnetic susceptibility. This signal time curve is then converted into a concentration time curve, and use of tracer kinetic analysis various hemodynamic variables, such as cerebral blood volume, cerebral blood flow, and mean transit time, as well as metrics that address vessel leakage may be estimated. Combined, these metrics enable microvascular imaging, providing a visual correlate of blood flow, volume, and vessel permeability.

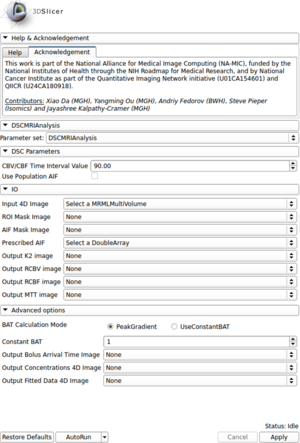

GUI of DSC Analysis Module

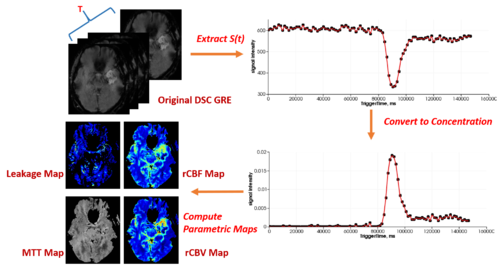

Framework of DSC Analysis

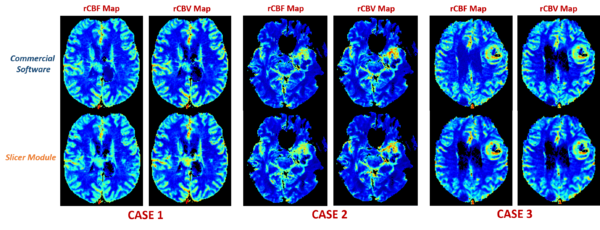

Comparison with the Commercial Software
Objective Approach and Plan Progress and Next Steps
  • Package the DSC analysis module
  • Make it available as a Slicer extension
  • Compare the results with the outputs from existing commercial softwares
  • Correct some parameters' name and finalize the source code
  • Update the source code on Github
  • Release the module

Background and References

Source Code
