Projects/Diffusion/2007 Project Week Glyphed Visualization For Volume Data

From NAMIC Wiki
Jump to: navigation, search
Home < Projects < Diffusion < 2007 Project Week Glyphed Visualization For Volume Data
Synthetical Diffusion Tensor Image.

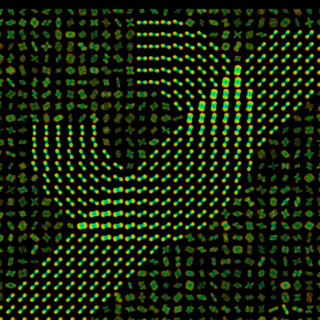

Synthetical Q-Ball Image.
Glyph Logic Design.


Key Investigators

  • Odyssée, INRIA, France: Demian Wassermann, Rachid Deriche
  • LMI, Brigham & Womens Hospital, Harvard Medical School: Raul San Jose, CF Westin


Objective

We are developing a Sliced Multiple Layer Glyph visualization for Volume data that will allow us to seameless integrate DTI and Q-Ball visualization into Slicer3 among any other glyphed visualization schemes.


Approach, Plan

Our approach is to refactor the MRML sctructure for Diffusion Image representation and visualization. We will also modify the Logic and GUI packages of Slice3 in order to allow easy integration of new glyphed visualization schemes.

Our plan for the project is to end with a working prototype,...

Progress

The MRML refactoring has been done incorporating the vtkMRMLDiffusionImageVolume class and its associates, this enables us to represent Diffusion Tensor, Q-Ball and Diffusion Spectral and High Angular Resolution Images along with any other Diffusion Image representations.



References

  • Basser, P. & Pierpaoli, C. Microstructural and physiological features of tissues elucidated by quantitative-diffusion-tensor MRI Journal of Magnetic Resonance B, 1996, 111, 209-219
  • Westin, C.; Maier, S. E.; Mamata, H.; Nabavi, A.; Jolesz, F. A. & Kikinis, R. Processing and visualization for diffusion tensor MRI. Med Image Anal, 2002, 6, 93-108
  • Tuch, D. S. Q-ball imaging, Magnetic Resonance in Medicine, 2004, 52, 1358-1372
  • Lenglet, C.; Rousson, M.; Deriche, R. & Faugueras, O. Statistics on the Manifold of Multivariate Normal Distributions: Theory and Application to Diffusion Tensor MRI Processing J Math Imaging Vis, 2006, 25, 423-444
  • Descoteaux, M.; Angelino, E.; Fitzgibbons, S. & Deriche, R. Apparent Diffusion Coefficients from High Angular Resolution Diffusion Images: Estimation and Applications, Magnetic Resonance in Medicine, 2006, 56, 395-410
