Summary

This document illustrates the widgets used in KWWidgets and their Qt counterpart

List of Widgets and associated panels (ordered by priority)

Ordered by priority. Different panels are illustrated here.

Widget	Panels	Note
WorkflowManager - ControlButton	Generic	Note that the buttons change based on the panels
TaskSelector	Define Task

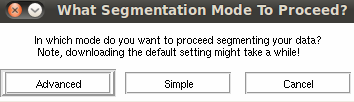

Segmentation Mode	Define Task
InputChannel selector	Define Input Channels	Qt: Should be embedded in qMRMLNodeComboBoxTableWidget

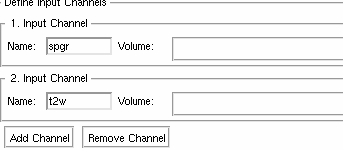

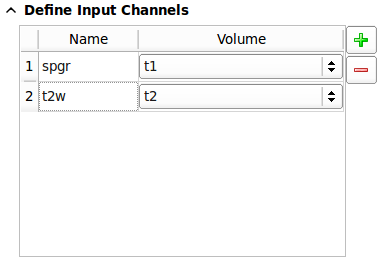

DynamicListOfInputChannel	Define Input Channels	Qt: Create a qMRMLNodeComboBoxTableWidget
Input channel aligned	Define Input Channels
Simple Mode GUI	Simple Mode

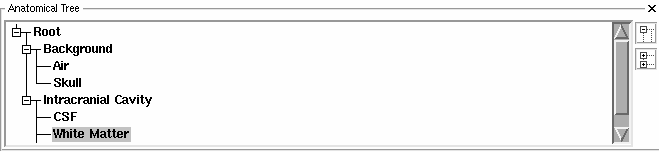

AnatomicalTree	Define Anatomical Tree, Define Atlas
NodeAttributes	Define Anatomical Tree	Note that it changes - for superclass only shows name !
ProbabilityMapSelector	Define Atlas	Qt:Use qMRMLNodeComboBox with node type: vtkMRMLVolumeNode
AtlasToInputRegistration	Edit registration parameters	Qt: Extend from qMRMLWidgets and use mrmlManager

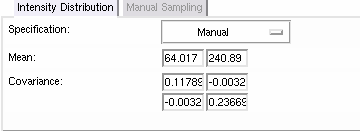

IntensityDistribution - lets talk about redesign	Specify internsity distributions

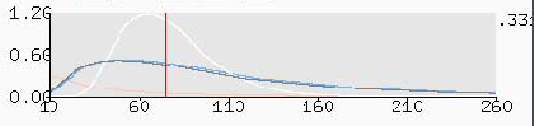

PlotClassDistribution1D	Plot class distribution 1D	Note that it changes when we have on input channel vs two
PlotClassDistribution2D	Plot class distribution 2D	Note that it changes when we have on input channel vs two
WeightEditor	Edit node-based parameters

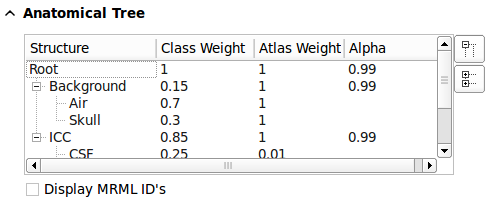

ClassWeightsOverview	Edit node-based parameters
StoppingConditionsEditor	Edit node-based parameters
Dynamic Preprocessing panel	Preprocessing	Currently implemented in Tcl. See function ShowUserInterface in MRI-human-brain.tcl
WorkingDirSelector	Run segmentation

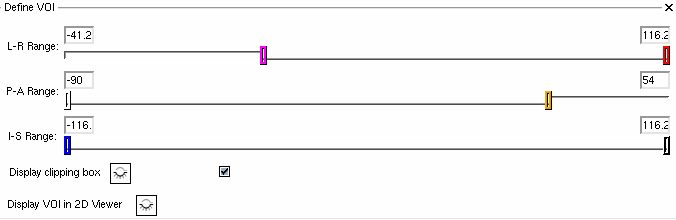

VOIEditor	Run segmentation

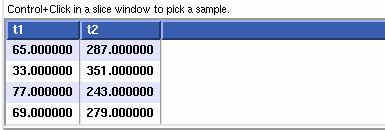

ManualSampling	Specify internsity distributions
OutputLabelMapSelector	Run segmentation
Colormap selector	Define Anatomical Tree	JC lets talk about the widget - i think functionality already exists in slicer

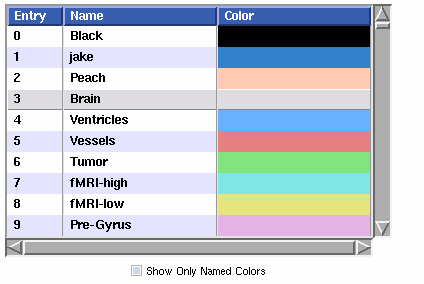

ColorMapViewOnly	Define Anatomical Tree	JC lets talk about the widget - i think functionality already exists in slicer
Multi-thread enabled	Run Segmentation

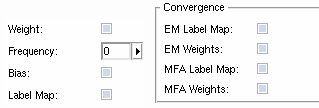

PrintConfig	Edit node-based parameters
AdvancedNodeParameterEditor	Edit node-based parameters
