Building SCIRun on an SPL Machine

These are the current build instructions for the Fedora Core 5 and Fedora Core 7 SPL machines.

To obtain the working branch utilized in the collaboration you need subversion. To obtain it:

 svn co

If instead you want a standard release build you can check out one of the repositories listed here such as:

 svn co

For more general information on SCIRun building visit the SCIRun Installation Wiki

To build cd to trunk/SCIRun and run the build script:

./ -jx

where x is the number of cores you have. The get cmake option may be necessary to build as SCIRun currently requires cmake 2.4.x. If your cmake is not 2.4.x then you can add --get-cmake and create a local version.

For our current project we utilize the extra package ModelCreation. If you do not use this package you can skip this step. To enable ModelCreation cd to SCIRun/bin directory:

If you are using 2.4.x cmake/ccmake version on the SPL machines current you can type:

 ccmake  ../src

If you are using the version of ccmake created for SCIRun by with the --get-cmake option then from the /trunk/SCIRun/bin directory type the following:

 ../cmake/local/bin/ccmake  ../src

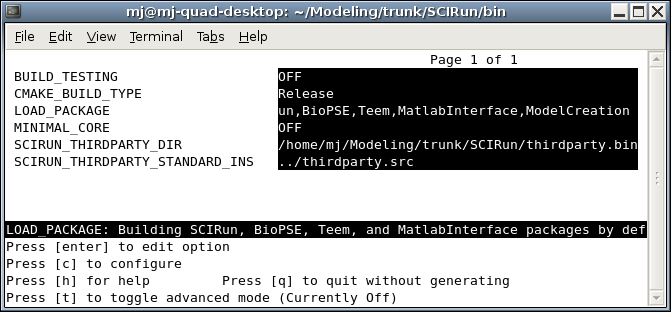

Once in ccmake add ModelCreation to the list of LOAD_PACKAGE. Arrow down to LOAD_PACKAGE and hit return to allow you to edit the listed packages. Once you have done this type c to configure and g to generate.


Once this has occured it will put you back into the shell in /trunk/SCIRun/bin, then just make:

 make -jx

When this is completed you currently have to direct SCIRun to the the correct drivers on the SPL machine build of Fedora as per this discussion. For this we utilize a script written in ksh so you need ksh installed on the system, which all SPL machines should have. If you are on another OS/machine SCIRun might already be setup correctly with regards to OpenGL drivers and you will not need this step. For the SPL Fedora machines cd to the /trunk/SCIRun/bin directory type:

 find . -name build.make | xargs ~dav/bin/updatefile.orig ~dav/changeit

When this is completed you need to run make again in the /trunk/SCIRun/bin directory:

 make -jx

You should now have a working version of SCIRun in your /trunk/SCIRun/bin directory.

You may run into this problem repeatedly and should check prior to running SCIRun. To check it, as per discussion above, you can do the following:

For example SCIRun gets pointed at the correct drivers as shown here:

   spl_tm64_1:/workspace/mjolley/Modeling/trunk/SCIRun/bin% ldd scirun | grep GL => /usr/lib64/nvidia/ (0x0000003f8e200000) => /usr/lib64/ (0x000000360c200000) => /usr/lib64/nvidia/ (0x0000003f80e00000)

In contrast SCIRun gets pointed to the wrong, non-hardware accelleration drivers here:

   spl_tm64_1:/workspace/mjolley/Modeling/trunk/SCIRun/bin% ldd scirun | grep GL => /usr/lib64/ (0x0000003f84800000) => /usr/lib64/ (0x000000360c200000)

Usually if the above script has been run you can get back to the correct drivers by:


and then rechecking whether the correct drivers are being utilized. It is a good idea to check this before starting SCIRun.
