Whole-Brain-Tractography-Wizard

The Idea of a Wizard

Make a simple set of steps that will guide the user through a complex process. An example of this is the simple wizard that takes the user from a DICOM or NRRD Diffusion Weighted Image to a Full brain tractography. There are 4 steps to this process:

•

  [DICOM to DWI]

•

  [DWI to DTI]

•

  [DTI to Fibers]

•

  [Fibers]

In order to generate this wizard, we will use the For each step, we must:

• Obtain the input from the interface
• Validate the input
• Set up the parameters for the next step
• Provide the user with the appropriate information about errors in the processing and/or missing data

API support for workflows

In order to do this, we use CTK's support for workflows:

• ctkWorkflow: State machine for the workflow
• ctkWorkflowStackedWidget: UI class for the workflow
• ctkWorkflowWidgetStep: Base class for each step of the workflow

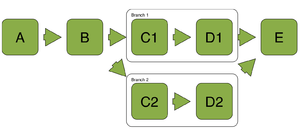

In which the idea is to derive a new class from ctkWorkflowWidgetStep for each step and then add them all to the workflow widget ctkWorkflowStackedWidget making the transition explicit. The class ctkWorkflow is a state machine that controls the sequence of steps that are to be executed. The next figure gives an example of a non-linear workflow that can be implemented through this method:

Example fo non-linear workflow

Events of each workflow widget step (ctkWorkflowWidgetStep)

• createUserInterface
• onEntry(comingFrom, transitionType)
• onExit(goingTo, transitionType)
• validate(validationSucceded, desiredBranchId)

Obtaining the input from the Interface

You can find the example at

 Modules/Scripted/Scripts/DICOM2FullBrainTractography/DICOM2FullBrainTractographyLib/full_tractography_workflow.py

In this example there is a helper class that makes things easy for linear workflows:

 WorkflowConfiguration

This class:

• Takes the widget for each step from a UI file generated by the designer
• Setups the widgets into a sequential workflow
• Obtain the data from the fields on the Qt window and put it into a python dictionary and passes it to the appropriate validation step

And requires

• Each step to be declared as the name of such file
• The fields from each step to be declared
• The validation for each step to be implemented

Declaring the Modules

   step_widget_files = [
       'dicom2nrrd',
       'dwi2dti',
       'dti2fibers',
       'done',
   ]

Declaring Each Module's Fields

   step_widget_fields = {
       'dicom2nrrd':[
           ('DICOMRadioButton', 'checked'),
           ('NRRDDWIRadioButton', 'checked'),
           ('inputDicomDirectory', 'directory'),
           ('outputVolume', 'currentPath'),
           ('useBMatrixGradientDirections','checked'),
           ('inputNRRDVolume','currentPath'),
       ],
       'dwi2dti':[
           ('leastSquaresEstimation', 'checked'),
           ('weightedLeastSquaresEstimation', 'checked'),
           ('thresholdParameter', 'value'),
           ('removeIslands', 'checked'),
           ('applyMask', 'checked'),
       ],
       'dti2fibers':[
           ('seedSpacing','value'),
           ('stoppingFAValue','value'),
           ('minimumFAValueSeed','value'),
           ('stoppingTrackCurvature','value'),
       ],
       'done':[],
   }

Validating Data for a Field

 def validate_dicom2nrrd(self, step_object, data):
       if data[step_object.id()]['DICOMRadioButton']:

Running a CLI module from a python script

           self.dicomtonrrdconverter_parameter_node = slicer.cli.run(
               slicer.modules.dicomtonrrdconverter, self.dicomtonrrdconverter_parameter_node,
               data[step_object.id()],
               wait_for_completion = True)

Validating the result of a CLI module

          if self.dicomtonrrdconverter_parameter_node.GetStatusString() == 'Completed':
               file_path = data[step_object.id()]['outputVolume']
               result_status, node = slicer.util.loadVolume(
                   file_path,
                   True
               )
           else:
               result_status = False

Setting data for the next module

           if result_status:
               self.dwi_node = node
               self.dwi_node_name = node.GetID()

Output errors if needed

       if not result_status:
           display_error("Error in DICOM to NRRD conversion, please see log")
       return result_status

Details on Each Step's CallBack Implementation

Entry Callback

   def onEntry(self, comingFrom, transitionType):
       comingFromId = "None"
       if comingFrom: comingFromId = comingFrom.id()
       super(GeneralizedStep, self).onEntry(comingFrom, transitionType)
       if hasattr(self, 'onEntryCallback'):
           self.onEntryCallback(self, comingFrom, transitionType)

Exit Callback

   def onExit(self, goingTo, transitionType):
       goingToId = "None"
       if goingTo: goingToId = goingTo.id()
       super(GeneralizedStep, self).onExit(goingTo, transitionType)
       if hasattr(self, 'onExitCallback'):
           self.onExitCallback(self, goingTo, transitionType)

Validation Callabck

   def validate(self, desiredBranchId):
       validationSuceeded = True
       if hasattr(self, 'validateCallback'):
           validationSuceeded = self.validateCallback(self, desiredBranchId)
       super(GeneralizedStep, self).validate(validationSuceeded, desiredBranchId)
