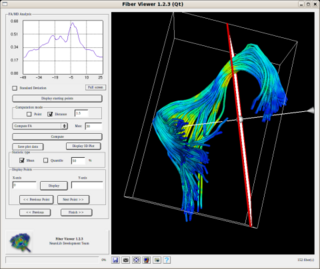

Statistics along Uncinate in PNL atlas

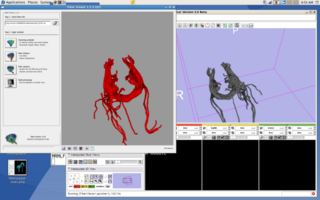

FiberViewer launched from Slicer 3 video


Key Investigators

  • UNC: Casey Goodlett, Guido Gerig
  • Harvard: Marek Kubicki, Sylvain Bouix, Marc Neithammer, Raul San Jose


Objective

We are developing methods for building atlases of DTI data to provide a reference coordinate system for statistical analysis.


Approach, Plan

Our approach for building a DTI atlas is based on non-rigid registration of tensor images using a shape measure for the tensor images to drive the registration process. Our goal is to separate the shape variability from the diffusion variability through the registration process.

Plan: Our goal for the project week is to perform statistical analysis on the data provided by the PNL, which has already been registered using the procedure described in the links below.

Progress

  • ROIs defined for tractography generation in atlas
  • fiber tract for 1 ROI created and warped to subjects
  • Slicer 3 code to support fiber tract editing
  • FiberViewer integration into Slicer 3
  • Future work: collect statistics along fiber tracts, package FiberViewer for installation into Slicer 3


Additional Information

  • Description of atlas procedure
  • Goodlett C, Davis B, Jean R, Gilmore J, Gerig G. Improved Correspondence for DTI Population Studies via Unbiased Atlas Building. MICCAI, 2006. PDF
